BJX Series Junction Box
The junction boxes BJX series are normally used to contain terminal blocks and they are recommended for routing and interconnecting the wires at the intersection of the conduits. The wide range offered serve to meet the specific requirements indicated by the custumer. They can be installed in areas classified as 1, 2, 21, 22 zones. The construction characteristics of the BJX
series boxes make them suitable for ambient temperature: -50 °C and + 65 °C.
It’s been widely used for wiring and distributing of various electricalequipments and connecting pipelines in chemical workshop, warehouse,refueling station, oil drilling platform, oil exploration and refining areas, etc.
download
Service hotline：
0523-88317000 88318288

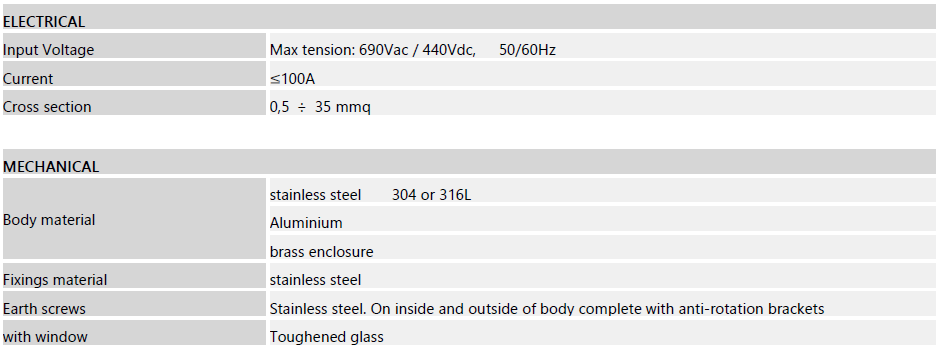

Parameter
-

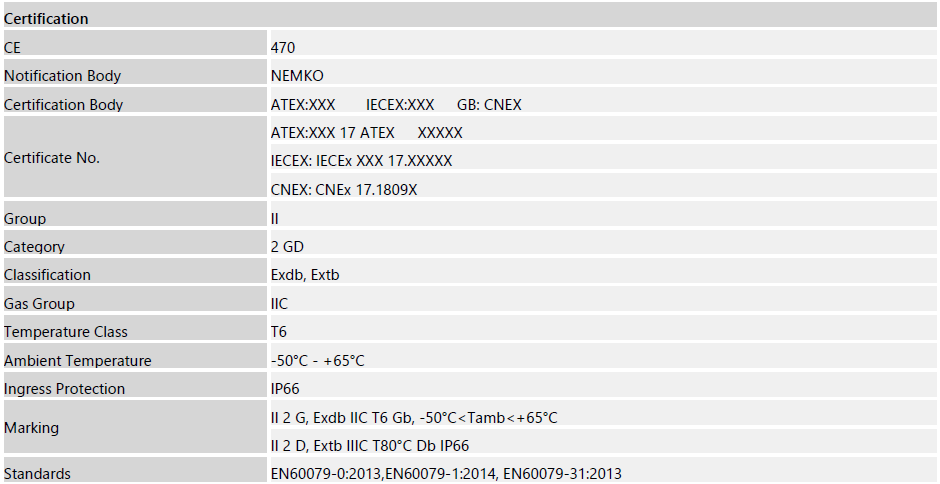

Specifications
-

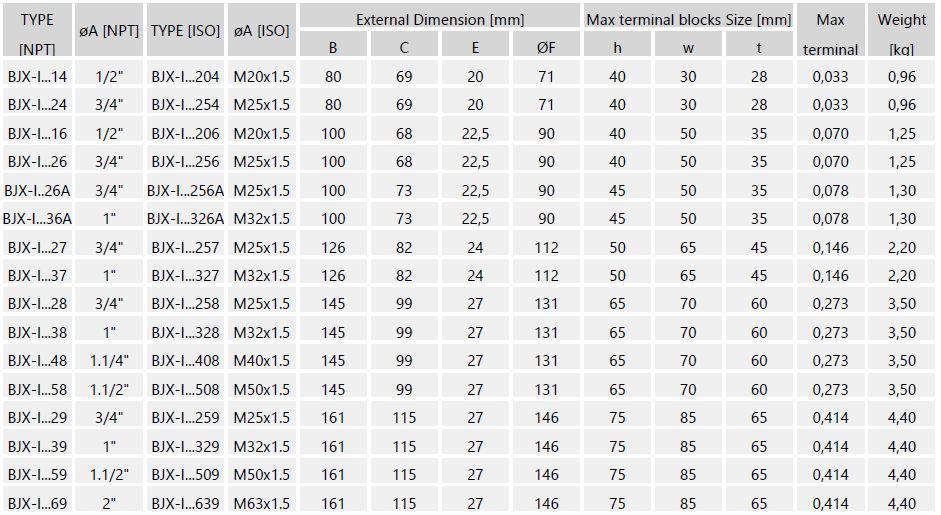

Dimensions

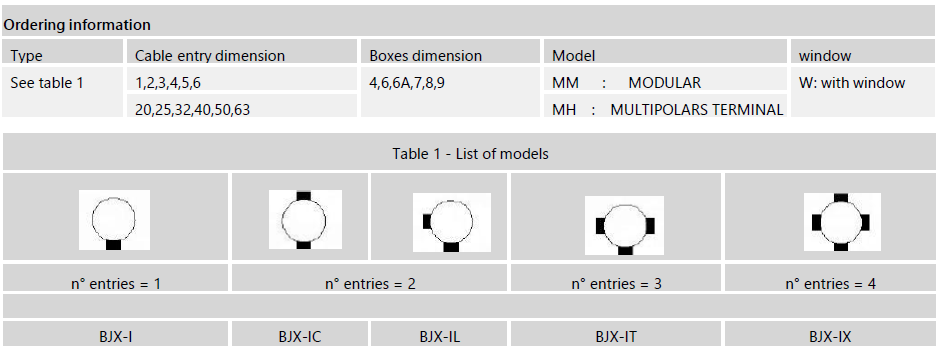

Parts
|
Please write what you need, we will contact you asap!
Give technical advice within 30 minutes | Provide program design within 24 hours | Send domestic / foreign engineers within 24/72 hours
|
